These Photos Capture the World’s Sewer Systems When They Were Brand New

Archival images from the late 19th and early 20th centuries reveal engineered labyrinths of civic optimism

Thea Petchler, Zócalo Public Square

January 9, 2020

Development of sewers in 1920s Paris. As the city grew, its sewer system was also required to expand. Here further egg-shaped sewers are added. Courtesy of Ville de Paris/BHVP

Boston Sewer siphon photographed in the 1880s. A sewer siphon replaced one of the original hollowed-out logs installed by early settlers. Courtesy of the Boston Public Library, Edgar Sutton Dorr Photograph Collection

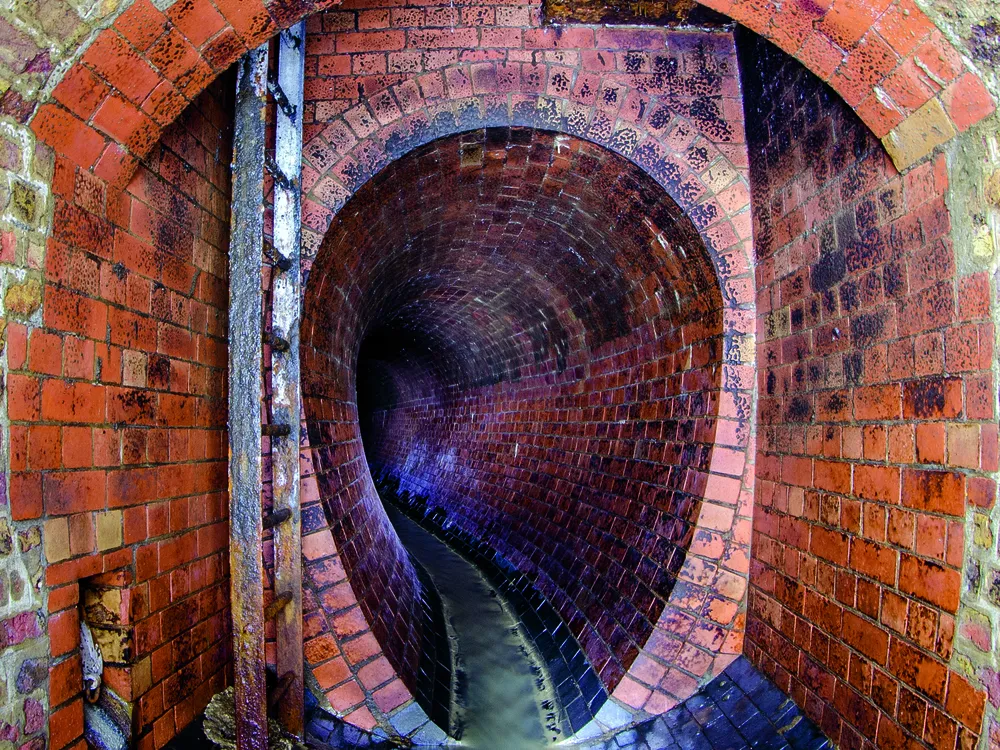

King’s Scholars’ Pond Sewer, London. Courtesy of Adam Powell

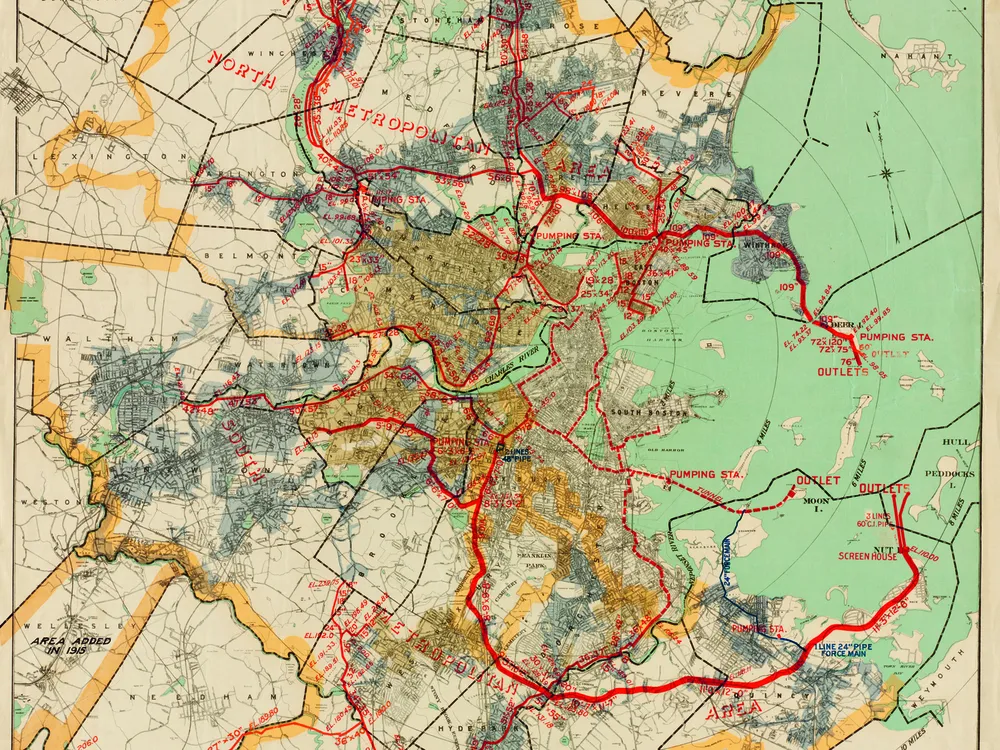

A 1921 map of the metropolitan sewerage district in Boston. By that year the bay had become severely polluted from the city’s sewage. In 1952 a treatment plant was constructed on Nut Island. However, this made an insufficient difference and it was not until the Boston Harbor clean up during the 1980s that the harbor water was rescued. Courtesy of the Boston Public Library, Norman B. Leventhal Map Center

A man is pictured mortaring a sewer wall in 1880s Boston. Mortaring the inside of the sewer is designed to make the sewer impermeable to water. Courtesy of the Boston Public Library, Edgar Sutton Dorr Photograph Collection

Construction of interceptor sewers in the 1920s—New Jersey, U.S. The main interceptor is 22 miles long and connects to 18 miles of branch sewers. Courtesy of the Passaic Valley Sewerage Commission, Newark, New Jersey

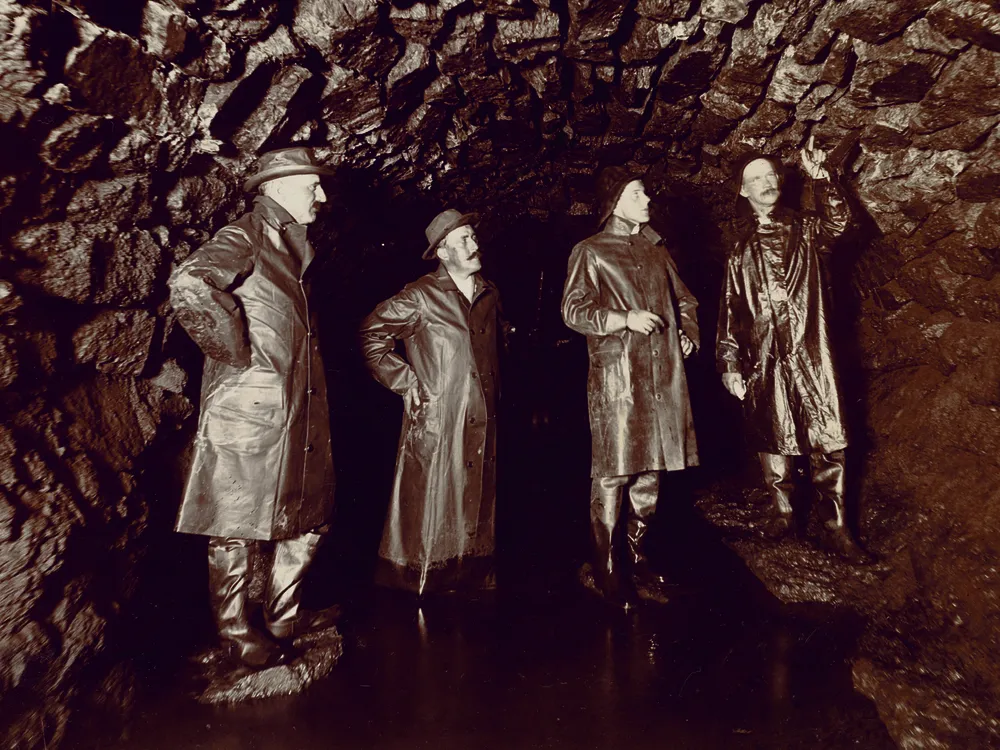

Men examining sewer stone work in Boston in the 1880s. The use of stone in this sewer was unusual, as bricks, clay, or wood were normally used. Courtesy of the Boston Public Library, Edgar Sutton Dorr Photograph Collection

Bricked lined sewer openings in Boston. The size of these tunnel openings reflect the massive effort made to upgrade Boston’s sewers. Courtesy of the Boston Public Library, Edgar Sutton Dorr Photograph Collection

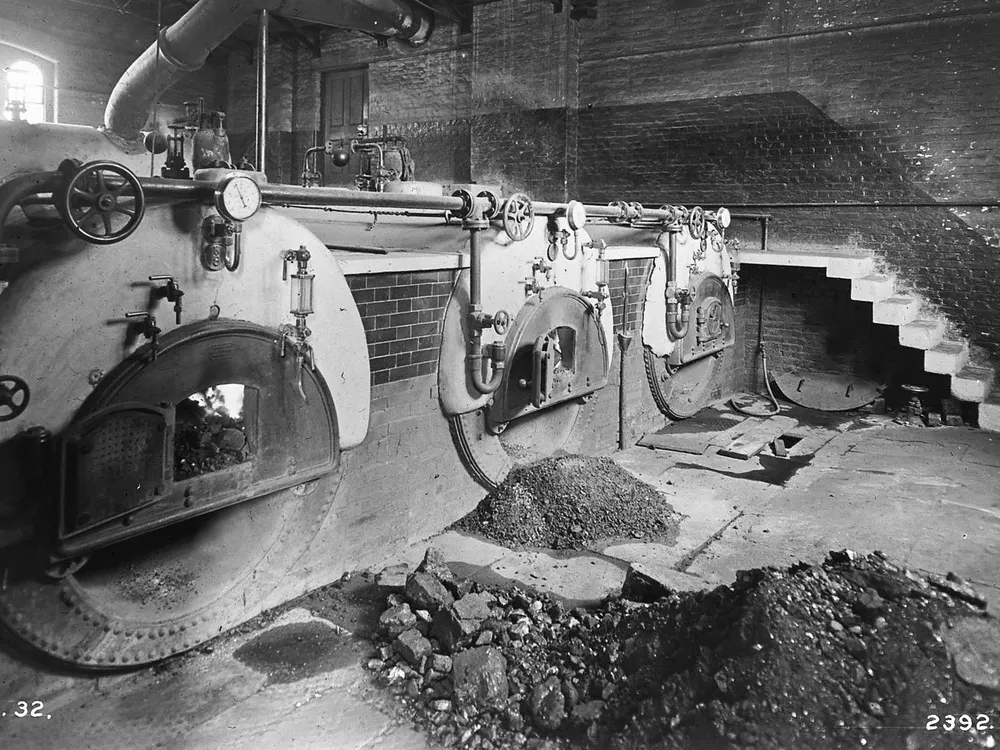

Deptford Pumping Station, London. The pumping station at Deptford was built to raise the sewage of south London into the outfall sewer running through Woolwich to Crossness. Courtesy of Thames Water Utilities Limited

Men standing in the opening of an unfinished sewer in Boston. Courtesy of the Boston Public Library, Edgar Sutton Dorr Photograph Collection

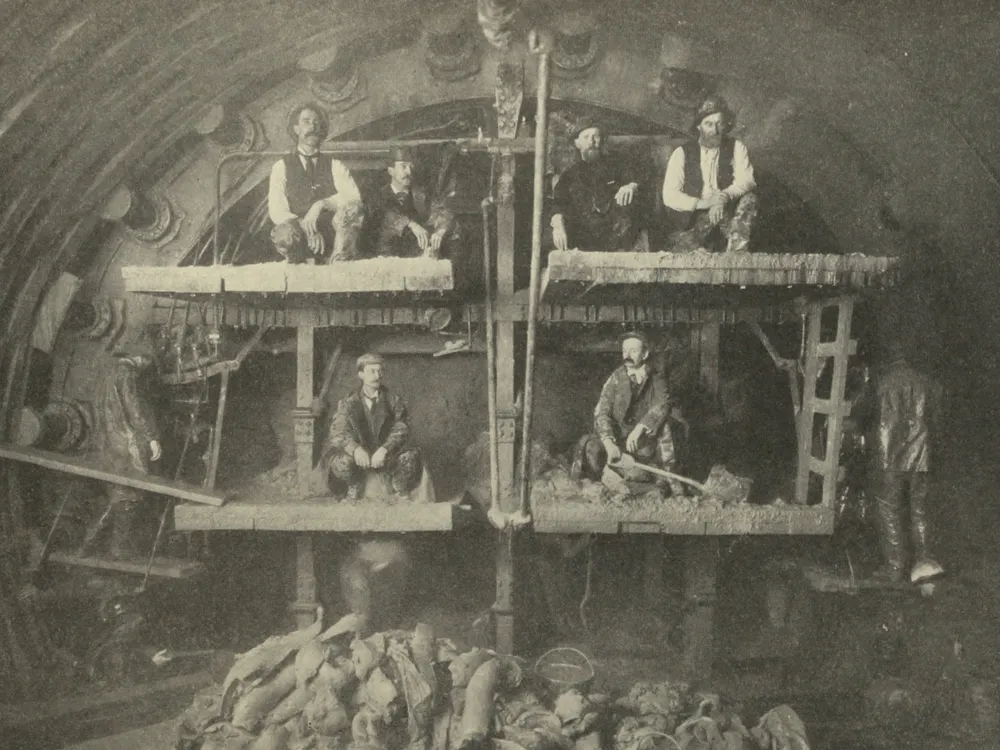

Men at work in 1912 constructing Chicago's 39th Street Intercepting Sewer, which was once the largest sewer in the world. Courtesy of Sewers and Drains, by Anson Marston

Below our city streets lies an ad-hoc world of subterranean tunnels and pipes. The oldest are brick and concrete sewers that once carried waste streams in one direction, rainfall overflow in another. Today, these waterways must contend with newer sewers, subway tunnels, power lines, and fiber-optic cables. But in the 19th century, these labyrinths were the only man-made things that existed below ground.

Archival photos reproduced in Stephen Halliday’s An Underground Guide to Sewers give us a rare view of these sewers of the past, as they looked to the people who engineered, built, and maintained them.

Most of these photographs—dating from the 1880s to the 1940s—show new construction; the before without the after. Pristine iron bars free of rust, walls too freshly mortared to settle and crack, cement yet unstained by water and waste. Older photos show brick-lined culverts, each brick having been laid by hand.

An Underground Guide to Sewers or Down, Through and Out in Paris, London, New York, &c. /anglais

Lose yourself in the vast sewer networks that lie beneath the world’s great cities – past and present. Let detailed archival plans, maps and photographs guide you through these subterranean labyrinths – previously accessible only to their builders, engineers and, perhaps, the odd rogue explorer.

These images are evocative, sometimes beautiful, appearing like black-and-white outtakes from a forgotten film noir. Storm drains appear as volumes of space, empty by design most of the time. Circular and oval tunnels lead from crawlspaces to caverns beneath reinforcing arches. Concrete corridors and junctions, absent any signage, make one wonder what would have happened if Robert Frost’s traveler had gone underground.

But there’s more to these spaces than their cosmetic wonder. These are, after all, not only sites for the flow of waste; they were also places of work. The men photographed in Victorian coats or Depression-era caps and vests do more than provide scale: they remind us that every sewer tunnel started as a noisy construction site. Imagine the human and mechanical din as rocks were carted or bulldozed away, dozens of workers wrangling stone and earth to fit engineers’ specifications.

Sewers were—and continue to be—the great enabler. As industrialization drew people to the city, those people, in turn, made new demands on water and waste systems. That’s why most of the projects pictured here were at capacity soon after completion. Perhaps that knowledge also imbues these photos with a sense of optimism; designed to solve problems, the sewers continued to work, unobtrusively, from their hiding place, to meet ever larger demands.

With this collection, we get to appreciate today what most people didn’t get to see then. It’s a privileged look at the triumphs of industrial-era infrastructure, but it’s also only one chapter of the narrative. What is left to the imagination is how these underground spaces have since been transformed: the aging materials replaced, the time that’s elapsed, overwriting the glory of a feat of engineering.
